How Much Does a Cast Iron Drain Pipe Cost to Replace in the UK?

Quick Cost Overview

• Replacing cast iron waste pipes with PVC costs £1,500-£3,000 for a standard property
• A full cast iron soil stack replacement typically runs £2,000-£4,000
• Most residential replacements take one to three days, though internal pipework takes longer

In this Price Guide we will cover:

1. Cast Iron Drain and Waste Pipe Replacement Costs
2. What Affects the Cost of Replacing Cast Iron Pipes?
3. Cast Iron vs PVC: Which Should You Replace With?
4. Signs Your Cast Iron Pipes Need Replacing
5. Additional Pipe Replacement Costs to Budget For
6. Find a Plumber on MyBuilder
7. FAQs: Cast Iron Pipe Replacement

Cast Iron Drain and Waste Pipe Replacement Costs

Cast iron pipes serve as waste pipes, soil stacks, and underground drain runs in the UK . When they fail, or when a renovation makes replacement the sensible choice, the scope and cost of the job varies considerably depending on what you're replacing and where.

The table below covers the main replacement scenarios and their typical costs in 2026:

Job Type	Estimated Cost
Single cast iron waste pipe replacement	£300-£800
Cast iron soil stack replacement (external)	£1,500-£3,500
Cast iron soil stack replacement (internal)	£2,000-£4,000
Full cast iron drain pipe replacement (under floor)	£2,000-£5,000+
Cast iron underground drain replacement	£1,500-£4,000

Internal pipework, where cast iron waste or soil pipes run inside walls or beneath suspended floors, costs significantly more than external stack replacements.

The additional expense comes from the disruption required: lifting floorboards, cutting into plasterboard or masonry, and reinstating surfaces once the new pipework is in place.

MyBuilder Tip: Always get at least three quotes before committing to a cast iron pipe replacement. The scope of these jobs can vary considerably in how they're priced - some plumbers quote per day, others on a fixed-price basis. Confirm exactly what's included before work starts.

Find plumbers near me

What Affects the Cost of Replacing Cast Iron Pipes?

Cast iron pipe replacement quotes can vary by thousands of pounds for jobs that look similar on the surface. The factors below explain why - and which ones are most likely to affect your specific project.

Pipe length and diameter

Longer runs of pipework require more materials and more labour time. Diameter also matters: replacing a 68mm rainwater pipe is a straightforward job, while a 110mm soil stack serving multiple floors involves significantly more work and heavier materials.

Access and location

This is often the biggest single driver of cost variation. External soil stacks are usually the most straightforward to replace - scaffolding or a ladder gives access to the fixings, and there's no building fabric to reinstate.

Internal pipework is more involved, as floors, walls, or ceilings may need to be opened up and made good afterwards.

Underground cast iron drain pipes add further complexity.

Depending on depth and soil conditions, excavation may be required, either by hand or with a mini-digger, and the trench reinstated with concrete haunching around the new pipe.

Number of storeys and connection points

A soil stack serving a single bathroom is a different job to one serving three floors with multiple branch connections for WCs, baths, and basins. Each additional connection point adds labour time and materials cost.

Material choice

PVC (uPVC) is the most common replacement material for cast iron waste and soil pipes - it's lightweight, corrosion-resistant, and significantly cheaper than cast iron.

HDPE (high-density polyethylene) is an alternative for underground drainage, offering flexibility and good resistance to ground movement. See the next section for a full comparison.

Cast Iron vs PVC: Which Should You Replace With?

When replacing cast iron drain or waste pipes, the vast majority of homeowners choose PVC as the replacement material.

It's the practical default for most residential work, but there are situations where cast iron remains the better choice, and it's worth understanding the trade-offs before committing.

PVC Replacement

PVC soil and waste pipes are the standard choice for modern residential plumbing in the UK. They're light to handle, quick to cut and join, and don't corrode. Installation is faster than cast iron, which reduces labour costs.

For a 3m length, a 110mm PVC soil pipe costs around £8-£15, compared to £80-£120 for the equivalent in cast iron.

The main disadvantage of PVC in a domestic setting is acoustic, cast iron significantly dampens the sound of water and waste moving through the pipe. In converted flats, open-plan homes, or properties where the soil stack runs through a living space, PVC can be noticeably louder.

Cast Iron Replacement

Replacing like-for-like with cast iron is rarely the first choice for cost reasons, the material is expensive and heavy, requiring more labour time to handle and install. However, it may be the preferred or required option in the following situations:

• Listed buildings or conservation areas where planning or listed building consent conditions require materials to match the original
• Properties where noise is a genuine concern cast iron is substantially quieter than PVC under load
• High-specification or period renovation projects where aesthetics matter A 100mm cast iron downpipe (1.83m length) costs around £100-£130, compared to £5-£15 for the equivalent in PVC. Labour costs are also higher due to the weight and the specialist jointing required.

For most standard residential replacements, PVC is the practical and cost-effective choice. If you're unsure which is appropriate for your property, a plumber familiar with older housing stock will be able to advise based on your specific setup.

You can browse profiles and completed project photos on MyBuilder to find plumbers with relevant experience before getting in touch. For more context on what plumbing work costs more broadly, see our plumber cost guide.

Compare local plumbers

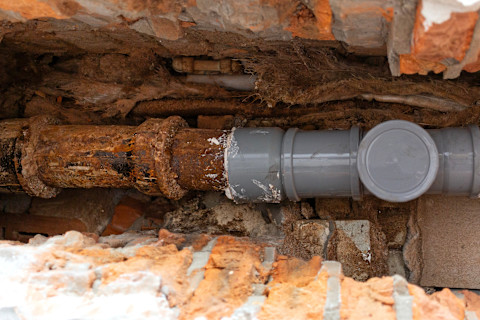

Signs Your Cast Iron Pipes Need Replacing

Cast iron pipes in good condition can last a very long time, properly maintained systems installed in the early twentieth century are still functioning in many UK properties.

The decision to replace rather than repair depends on the nature and extent of the deterioration. These are the signs that indicate replacement is the more sensible course of action.

Persistent leaks despite repeated repairs. A single localised leak in an otherwise sound pipe is usually worth repairing. Multiple leak points, or a leak that recurs after repair, suggests the pipe wall has thinned and corroded beyond patching. At that point, repair is a short-term fix that delays an inevitable replacement. For an idea of what repair work costs before you commit to a full replacement, see our leaking pipe repair cost guide.

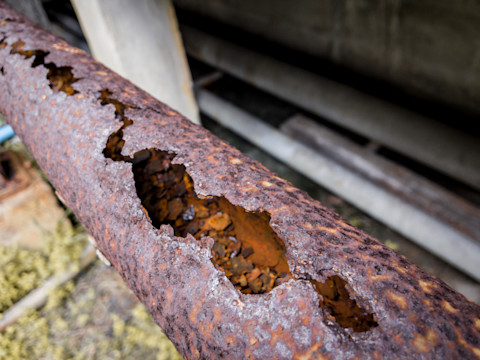

Visible external rust and flaking. Surface rust on cast iron is common and doesn't always indicate a problem. Heavy external corrosion, particularly where the pipe surface is flaking away in chunks, suggests the metal has thinned significantly and the structural integrity of the pipe is compromised.

Slow drainage or recurring blockages. Internal corrosion in cast iron pipes creates a rough, pitted interior surface that accumulates scale and waste more readily than smooth PVC.

Cracking or physical damage. Cast iron becomes more brittle with age and is vulnerable to cracking from ground movement, thermal cycling, or physical impact. A cracked soil or drain pipe allows foul gases to escape and creates a pathway for tree root ingress underground.

Damp patches on walls or ceilings near pipework. If leaking waste or soil pipework is causing persistent damp, the secondary damage to building fabric, timber rot, plaster deterioration, mould, will quickly exceed the cost of the pipe replacement itself.

Age. If a property's cast iron drainage system dates from before 1960 and has never been replaced, it's worth having a CCTV drain survey carried out to assess the condition of underground sections before any problems become apparent. For more information on what this involves, see our drain survey cost guide.

Additional Pipe Replacement Costs to Budget For

The core replacement cost covers labour and materials for the pipe itself, but on many cast iron jobs, particularly in older properties, that's rarely where the spending stops.

The items below aren't guaranteed, but they come up frequently enough that it's worth building a contingency into your budget from the outset rather than being caught out mid-project.

• Wall and floor reinstatement: If the pipework runs through walls or beneath a suspended floor, opening up and making good is typically charged separately. Plastering costs around £150-£500 depending on the area; floor reinstatement (screed, boards, or tiles) varies considerably by finish.
• Scaffolding: External soil stacks on two-storey or higher properties usually require scaffolding or a working platform for safe access. Expect £100-£400 for a standard scaffolding hire.
• CCTV drain survey: If the condition of underground sections is unknown - particularly on older properties, a CCTV survey before replacement work starts can prevent surprises. A standard survey typically costs £100-£300. See our drain survey cost guide for more detail.
• Building regulations: For certain drainage work, particularly where it connects to the public sewer, building regulations notification may be required. Your plumber will advise, but factor in £50-£200 if applicable.

Find a Plumber on MyBuilder

On MyBuilder, you can find local plumbers who are available and interested in your project. Browse profiles, read homeowner reviews, and view photos of completed projects to find someone with relevant experience before getting in touch.

All tradespeople on MyBuilder undergo checks at registration, including ID documents, company details, and skills assessments, allowing you to hire with confidence.

Find a plumber near me

FAQs: Cast Iron Pipe Replacement

How Long Does It Take to Replace Cast Iron Waste Pipes?

A straightforward external soil stack replacement on a standard two-storey property typically takes one to two days. Internal replacements - where pipework runs through walls or floors - take longer, usually two to four days depending on how much building fabric needs to be opened up and reinstated.

Underground drain replacements involving excavation can take three to five days or more depending on access and the length of run.

Can Cast Iron Pipes Be Repaired Rather Than Replaced?

Minor, localised damage, a single crack or a leaking joint, can often be repaired rather than replaced. Epoxy repair compounds, rubber couplings, and push-fit repair sections are all options for isolated failures.

However, repairs to cast iron are generally considered a short-term measure. If the pipe has multiple failure points or shows widespread internal corrosion, full replacement is more economical over a five to ten year horizon.

Do I Need Planning Permission to Replace Cast Iron Pipes?

For most residential properties, replacing cast iron pipes is considered permitted development and does not require planning permission.

There are two main exceptions: listed buildings, where even internal alterations can require listed building consent; and conservation areas, where external works, including replacing a visible soil stack, may need prior approval from the local planning authority. If in doubt, check with your local authority before work begins.

What Is the Difference Between a Waste Pipe, Soil Pipe, and Drain Pipe?

These terms are sometimes used interchangeably but refer to different parts of the drainage system.

A waste pipe carries grey water (from sinks, baths, and showers) to the drain.

A soil pipe carries foul water (from toilets) and must connect to the sewer.

A drain pipe is the underground section that takes all waste from the property to the public sewer.

Cast iron was used for all three types in older properties, and the replacement approach differs depending on which type is being addressed.

Is PVC a Suitable Replacement for Cast Iron Soil Pipes?

Yes. PVC (uPVC) is the standard replacement material for cast iron soil and waste pipes in most residential properties. It's approved for use under Building Regulations, widely available, and significantly cheaper and easier to install than cast iron. The one meaningful trade-off is acoustic:

PVC transmits the sound of water and waste more readily than cast iron. In properties where the soil stack runs through a living space, acoustic lagging around the pipe is worth considering.

How Can I Tell If My Cast Iron Pipes Need Replacing vs. Just Cleaning?

Internal blockages and slow drainage are sometimes a cleaning issue rather than a structural one - years of scale and organic build-up on the rough internal surface of aged cast iron can significantly reduce flow.

A high-pressure jetting service is often worth commissioning before deciding on replacement, particularly for underground drain sections. If the pipe clears and flow is restored, replacement may not be necessary yet. If the pipe cannot be effectively cleared, or if jetting reveals structural damage, replacement is the more appropriate course of action.
