RCD vs MCB: Understanding Circuit Protection Devices

The Role of RCDs and MCBs in Electrical Safety

This article will break down the differences between RCDs and MCBs, explaining what each device does, how they work, and where they should be used. Whether you're a homeowner, an electrician, or simply curious about electrical safety, this guide will help you understand the roles these devices play in protecting your electrical circuits.

We’ll cover the following topics in this article:

1. What is the Difference Between Residual Current Devices (RCDs) and Miniature Circuit Breakers (MCBs)?
2. What is a Residual Current Device?
3. What is a Miniature Circuit Breaker?
4. Key Differences Between RCDs and MCBs
5. When Should You Use an RCD?
6. When Should You Use an MCB?
7. Ensure Electrical Safety with Professional Help
8. FAQs About RCDs and MCBs

What is the Difference Between Residual Current Devices (RCDs) and Miniature Circuit Breakers (MCBs)?

Residual Current Devices (RCDs) and Miniature Circuit Breakers (MCBs) are both crucial safety devices in electrical systems, but they serve different purposes. RCDs protect people from electric shock and earth leakage by cutting off power when there is an imbalance in the current, such as when a person comes into contact with an electrical fault. MCBs, on the other hand, protect the circuit from overcurrent or short circuits caused by faults in the wiring or malfunctioning equipment. While RCDs focus on human safety, MCBs are designed to safeguard the electrical system and devices from damage. Both are essential for comprehensive protection in any electrical installation.

What is a Residual Current Device (RCD)?

A Residual Current Device (RCD) is a safety device designed to protect against electric shock and fire hazards caused by earth faults. It detects any imbalance between the live and neutral wires. If an RCD senses that electricity is leaking (such as when it flows through a person’s body), it trips and disconnects the power almost instantly, preventing electric shocks.

RCDs are essential in areas like bathrooms, kitchens, and outdoor spaces, where the risk of electric shock is higher. These high-risk areas often involve water or damp conditions, increasing the chances of electrical faults.

There are different types of RCDs, each designed for specific needs. Type A RCDs protect against sinusoidal AC residual currents, while Type B RCDs offer protection against both AC and pulsating DC residual currents. Type B RCDs are typically used in applications like variable-speed drives or photovoltaic systems, where more complex currents are present.

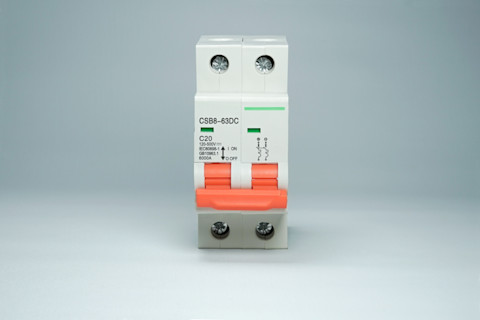

What is a Miniature Circuit Breaker?

An MCB (Miniature Circuit Breaker) is a protective device designed to prevent damage caused by overcurrent, short circuits, and potential fire hazards that can result from electrical faults. It trips when the current flowing through the circuit exceeds a safe level, thereby protecting electrical wiring and appliances from overheating, which could potentially lead to fires.

Unlike the RCD, which is used for electric shock protection, MCBs are installed in the main distribution board to protect individual circuits from overcurrent. You may also find our new fuse cost and hourly electricians price guide interesting.

Key Differences Between RCDs and MCBs

Primary Function: Protecting People vs. Electrical Circuits

RCD (Residual Current Device) protects against electric shock and earth faults by detecting any imbalance in the current. It cuts off the power supply when a fault is detected, ensuring that people are protected from potential electric shocks.

MCB (Miniature Circuit Breaker), on the other hand, protects electrical circuits from overcurrent or short circuits. It automatically trips when the current exceeds a safe level, preventing damage to the wiring and connected devices.

Monitoring: Current Imbalance vs. Overcurrent

RCD monitors for an imbalance in the current, specifically earth leakage. It ensures that any unintended flow of current to the earth is detected and stopped quickly, preventing electric shocks.

MCB monitors for overcurrent in the circuit. It protects the system by detecting excessive current that could lead to overheating or fire and trips the circuit to avoid further damage.

Protection Focus: People vs. Wiring and Devices

RCD is designed to protect people from electric shock by cutting off the electrical supply when there is leakage or imbalance. It is essential for safeguarding individuals from potentially dangerous electrical faults.

MCB focuses on protecting the wiring and connected devices. By disconnecting the power supply in the event of an overcurrent or short circuit, it prevents the circuit from being damaged or overheated.

Common Usage: Where They Are Typically Found

RCDs are commonly used in areas where the risk of electric shock is higher, such as bathrooms, kitchens, and outdoor areas. They are also crucial in environments with higher levels of water or moisture.

MCBs are typically used in distribution boards, lighting circuits, and appliance circuits. They are suitable for protecting the entire electrical system from potential overcurrent or short circuit damage.

Speed of Action: Immediate Protection Against Different Risks

RCDs act very quickly, usually within milliseconds, to prevent electric shock. Their rapid response is essential in situations where immediate action is needed to protect people from harm.

MCBs also respond quickly, though their main goal is to prevent overheating or fires caused by overcurrent. Their action helps maintain the integrity of the electrical system by cutting the power when necessary.

When Should You Use a Residual Current Device?

Residual Current Devices (RCDs) are essential for any environment where electrical installations could come into contact with water, such as bathrooms, kitchens, or outdoor spaces. These areas are considered high-risk because water increases the likelihood of electrical faults or leakages. In such cases, Residual Current Devices ensure that power is immediately cut off to prevent injury, making them important for safety.

Additionally, Residual Current Devices are often required by building regulations for specific installations. If you're unsure about your electrical protection, consider consulting an electrician about installing Residual Current Devices for added safety.

When Should You Use an MCB?

MCBs should be installed in any electrical system to prevent overcurrent. They protect individual circuits from overloads and short circuits, making them important for households or businesses with high-power devices such as air conditioners or kitchen appliances. MCBs ensure that the wiring remains safe, preventing damage from excessive current.

MCBs are commonly found in residential distribution boards and commercial installations, where they protect circuits for lighting, appliances, and power outlets.

Ensure Electrical Safety with Professional Help

If you're unsure about the protection in your home or business, let MyBuilder connect you with electricians who can assess your electrical system. Whether you need help installing RCDs for electric shock protection or MCBs for overcurrent safety, our verified tradespeople are ready to guide you through the process and ensure your system meets the appropriate safety standards.

Get Quotes from Local Electricians

FAQs About RCDs and MCBs

Can RCDs Prevent Electrocution in Outdoor Environments?

Yes, RCDs are effective at preventing electrocution in outdoor environments, where moisture increases the risk of electric shock. If leakage current is detected, such as through a person’s body, the RCD trips and cuts off the power immediately, ensuring safety.

How Do MCBs Handle Power Surges or Short Circuits?

MCBs detect power surges or short circuits caused by wiring faults or equipment malfunctions. When an MCB senses overcurrent, it trips and disconnects the circuit, preventing damage and reducing the risk of fire.

Can an RCD Be Added to an Older Electrical Installation?

Yes, RCDs can be added to older electrical systems. However, some older wiring may need to be updated for compatibility. It is advisable to consult an electrician to ensure the existing installation can safely support an RCD.

Are MCBs Sufficient for All Types of Electrical Protection?

No, MCBs protect against overcurrent and short circuits but do not provide protection against electric shock or earth leakage. For comprehensive protection, it is essential to use MCBs alongside RCDs, ensuring both human and circuit safety.

How to Reset a Tripped Circuit Breaker?

To reset a tripped circuit breaker, switch off any connected appliances to avoid overload. Locate the tripped breaker in your fuse box—it will usually be in the middle position. Push it fully to the "off" position, then back to the "on" position. If it trips again, consult an electrician, as there may be an underlying issue.
