Drainage System Installation Costs: A Pricing Breakdown

Quick Cost Overview

• The average cost of installing a drainage system in the UK ranges from £1,500 to £5,500.
• French drain installation typically costs between £1,500 and £4,500.
• Soakaway systems range from £750 to £2,500.
• Additional costs include permits, landscaping restoration, and annual maintenance.

Drainage System Costs Contents

1. Drainage System Cost Breakdown
2. French Drain System Costs
3. Soakaway Drainage System Costs
4. Lawn Drainage System Costs
5. Labour Costs for Drainage Installation
6. Additional Drainage System Costs to Budget For
7. Find a Drainage Installer with MyBuilder
8. FAQs: Common Questions About Drainage System Costs

Drainage System Cost Breakdown

The cost of installing a drainage system in the UK typically falls between £1,500 and £5,500 for most domestic projects, though simpler systems can come in lower and complex multi-zone installations can exceed this range.

The wide spread reflects the significant differences between system types - a basic soakaway is a very different job to a full yard French drain with multiple outlets.

Average costs of UK drainage systems:

Drainage System Type	Average Cost
French drain (10m)	£1,500 - £2,000
French drain (20m)	£2,500 - £3,200
Full yard French drain	£3,500 - £4,500
Soakaway (crate system)	£1,500 - £2,500
Soakaway (rubble-based)	£750 - £1,600
Lawn drainage system	£1,200 – £4,800

The main factors that drive drainage installation costs are:

• Area size: Larger areas require more pipework, more excavation, and more labour time - all of which push the price up.
• Complexity of the job: Challenging ground conditions, restricted access, or the need to work around existing structures all add cost.
• Materials: Higher-grade pipes, geotextile membranes, and drainage crates cost more upfront but tend to perform better and require less maintenance over time.
• Labour requirements: Most drainage work requires at least one groundworker, and complex jobs may need additional trades.
• Location: Labour rates vary considerably across the UK - tradespeople in London and the South East typically charge more than those in other regions.

Find drainage installers

French Drain System Costs

A French drain is one of the most common solutions for gardens with persistent waterlogging or saturated soil. It works by laying a perforated pipe in a gravel-filled trench, which intercepts groundwater and channels it away from the affected area.

The system relies on a natural slope to move water toward an outlet, a soakaway, ditch, or surface drain.

French drain installation costs typically range from £1,500 to £4,500, with the length of the drain being the primary cost driver.

• A 10-metre drain for a small garden starts from around £1,500 to £2,000.
• A 20-metre system covering a larger plot tends to cost £2,500 to £3,200.
• Full yard drainage covering multiple zones can reach £3,500 to £4,500 or more.

Ground conditions play a significant role in the final cost. Clay-heavy or compacted soil takes longer to excavate and may need additional materials to ensure the system drains effectively. Rocky ground adds further time and cost.

If your garden has an existing landscape that needs to be removed and reinstated around the trench, factor that in too. For a full breakdown, see our French drain installation cost guide.

Soakaway Drainage System Costs

A soakaway manages surface water by collecting it underground and allowing it to percolate slowly into the surrounding soil. It is commonly used to handle roof water runoff, surface water from driveways, or overflow from garden drainage systems. Under UK building regulations, homeowners are responsible for adequate surface water drainage around their property. A soakaway is often the most practical solution.

The cost depends primarily on the type of soakaway and the size required:

• Soakaway crate system: The most common modern approach, using interlocking plastic crates buried underground. Costs typically range from £1,500 to £2,500 for a domestic installation.
• Rubble-based soakaway: The traditional method, filling a pit with rubble or gravel. More affordable at £750 to £1,600, but less efficient and not suitable for all sites.

If you are already planning driveway work, it may be worth considering whether a permeable paving solution could address drainage issues at the same time, potentially avoiding the need for a separate soakaway installation. For more detail, see our garden irrigation systems cost guide.

Lawn Drainage System Costs

Lawn drainage systems are designed to prevent surface water from pooling on grass, which can cause root damage, moss growth, and long-term lawn deterioration. They typically involve a network of perforated pipes laid beneath the turf, which channel water away to a soakaway or outlet point.

Installation costs for a lawn drainage system generally range from £1,200 to £4,800, depending on the size of the lawn, the extent of the drainage problem, and the complexity of the pipe layout required. For large lawns with recurring flooding, a professional site assessment from a local service is worth arranging before committing to a specific system.

Drainage problems that appear to be lawn issues are sometimes caused by compaction or underlying soil conditions that need addressing first, getting the diagnosis right saves money in the long run.

Find a local drainage specialist

Labour Costs for Drainage Installation

Labour is typically the largest single cost in any drainage project. Most drainage work is carried out by groundworkers or landscapers, with day rates varying by location and project complexity.

As a general guide, drainage labour rates in the UK run from £150 to £300 per day per worker. In London and the South East, expect rates at the higher end of this range. For a medium-sized domestic project, total labour costs typically fall between £600 and £1,400.

The key tasks that make up most drainage installations, and therefore most of the labour cost, are:

• Site assessment: Surveying the area to identify drainage problems, check soil permeability, and plan the most effective system layout.
• Excavation: Digging trenches for pipes or pits for soakaways. This is usually the most time-intensive part of the job, particularly in hard or clay-heavy ground. For more on what trench digging involves, see our guide on how to dig a trench.

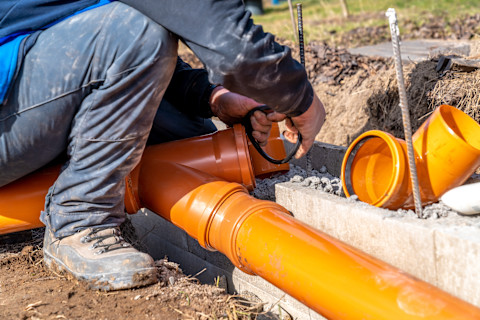

• Pipe installation: Laying, connecting, and testing pipework to ensure correct falls and flow.
• Backfilling: Covering pipes with gravel and soil, compacting layers correctly to prevent subsidence.
• System testing: Checking that water flows as intended before the trench is fully closed. On larger or more complex projects, a mini excavator may be brought in to speed up excavation. This is usually included in the contractor's quote, but always confirm this when comparing different quotes in your area.

On MyBuilder, you can review profiles, read customer feedback, and see photos of previous drainage work from local tradespeople, making it straightforward to compare what is and is not included before you commit to anyone.

Additional Drainage System Costs to Budget For

Beyond the core installation, several additional costs can arise depending on the specifics of your project. Accounting for these can help to avoid budget surprises partway through the job.

Additional costs:

• Permits and planning: Some drainage installations require local council permits, particularly if the system connects to a watercourse or involves significant groundworks. Permit fees typically range from £100 to £300, depending on your local authority.
• Equipment hire: Where specialist machinery is needed beyond what the contractor brings, equipment rental, such as skip hire at £150 to £300, may be added to your quote. Always confirm what is and is not included before work starts.
• Landscaping restoration: Excavation will disturb turf, beds, and surface materials. Restoring your garden or lawn after installation typically costs £200 to £1,000, depending on the extent of disruption and the finish required. For a full breakdown of what landscaping work involves, see our garden landscaping costs guide.
• Unexpected ground conditions: High water tables, rocky substrates, or buried debris can complicate excavation and add unplanned costs. A good contractor will flag these risks during the assessment phase, but it is sensible to keep a contingency of around 10-15% of your total budget.
• Annual maintenance: Drainage systems are not entirely maintenance-free. Periodic jetting, clearing of inlet points, and inspection of soakaway performance are worth budgeting for. Annual maintenance costs typically run £50 to £200 depending on system type and size.

Find a Drainage Installer with MyBuilder

It is easy to find a local drainage installer on MyBuilder. Once you have posted your job, available tradespeople in your area can respond with their advice and services. From there, you can browse their profiles, read reviews from local homeowners, and see photos of previous drainage work - so you can make an informed decision before committing to anyone.

All tradespeople on MyBuilder undergo checks at registration, such as ID documents, company details, certifications for regulated jobs and skill assessments, allowing you to hire with confidence.

Find a drainage installer near me

FAQs: Common Questions About Drainage System Costs

How Much Does It Cost to Install a Drainage System in the UK?

The average cost of installing a drainage system in the UK ranges from £1,500 to £5,500 for most domestic projects. French drain installation typically costs £1,500 to £4,500, soakaway systems range from £750 to £2,500, and lawn drainage systems fall between £1,200 and £4,800. Labour accounts for the majority of the cost, with day rates running £150 to £300 per worker.

How Long Does It Take to Install a Drainage System?

Most domestic drainage systems can be installed within one to five days. Simpler jobs, such as a small soakaway or a short French drain, can be completed in a single day. Larger projects involving extensive excavation, multiple drainage zones, or hard ground conditions will take longer. Factor in additional time if permits are needed, as these can delay the start of work.

What Is the Best Drainage System for Clay Soil?

Clay soil retains water and drains slowly, making it one of the most common causes of garden waterlogging in the UK. French drains, soakaway crate systems, and perforated pipe systems are all effective options for clay ground. A percolation test is recommended before installation to check how well the soil absorbs water, this determines the correct size and type of system for your site. You can browse photos of completed drainage projects on MyBuilder to see examples of how local tradespeople have tackled similar clay soil challenges.

Do I Need Planning Permission for a Drainage System?

Most standard garden drainage installations do not require planning permission and fall under permitted development rights. However, if your system connects to a watercourse, involves significant changes to surface water management, or you live in a conservation area or listed building, you may need to seek approval from your local authority. A drainage installer will be able to advise on whether your specific project requires any permits.

How Do I Find the Most Cost-Effective Drainage Solution?

Start by identifying the specific problem, surface water pooling, groundwater seeping up, or water coming from a neighbouring property all point to different solutions. A site assessment from a drainage professional is the best starting point, as the wrong system installed in the wrong place will not solve the problem and may need to be replaced. Getting three quotes from MyBuilder and comparing them in detail, not just on price but on what is included, is a way to ensure you are getting fair value.
