What Is Double Glazing? And How Does It Work? A Guide for Homeowners

Double glazing is now the standard for residential windows in the UK. This guide covers everything a homeowner needs to know about double glazing - from the physics of how it reduces heat loss to what to look for when replacing windows, how long they should last, and whether triple glazing is worth paying for.

Table of Contents

1. What Is Double Glazing?
2. How Does Double Glazing Work?
3. How Does Double Glazing Reduce Heat Loss?
4. How Long Should Double Glazing Last?
5. Signs Your Double Glazing Needs Replacing
6. Is Triple Glazing Better Than Double Glazing?
7. Double Glazing Options: Frame, Glass, and Gas Choices
8. How to Fit Double Glazed Windows
9. How to Find a Window Fitter
10. FAQs: Double Glazing

This guide covers how double glazing works, what affects its lifespan, how it reduces heat loss, the triple glazing comparison, and how to fit double glazed windows, read through in order or jump to the section you need.

What Is Double Glazing?

Double glazing refers to a window unit made from two panes of glass separated by a gap, typically 12-20mm wide, that is filled with air or an inert gas, usually argon.

The two panes are bonded together around their edges with a spacer bar and sealed to create an insulating unit called a Double Glazed Unit (DGU), sometimes called an Insulating Glass Unit (IGU).

This sealed unit is then fitted into a frame, uPVC, aluminium, timber, or composite, to create the completed window. The frame is almost as important as the glass for thermal performance, since poorly insulating frames can transfer heat around the outside of the sealed unit, significantly reducing the overall window's effectiveness.

The principle behind double glazing has been understood since the late nineteenth century, but it became a commercial product in the 1950s and widespread in UK domestic construction through the 1970s and 1980s. Building Regulations have required double glazing (or equivalent performance) in new windows since 2002.

Find a window fitter near you

How Does Double Glazing Work?

The insulating effect of double glazing comes from the combination of two mechanisms: the gap between the panes acts as a thermal barrier, and the gas filling that gap conducts heat even less efficiently than still air.

Heat moves through a solid material (like glass) by conduction - the direct transfer of thermal energy from one molecule to the next. Single-pane glass has very high thermal conductance, meaning heat moves through it rapidly from the warm inside of a building to the cold outside.

Double glazing interrupts this by placing two panes with a gap between them. Heat conducts through the inner pane, then must cross the gap. Still air is a poor conductor of heat compared with glass or metal, it transfers heat primarily through convection (the circular movement of air) rather than conduction. The gap is deliberately narrow (typically 12–20mm) to limit this convective movement.

The gas filling improves this further. Argon (the most common fill gas) conducts heat approximately 34% less efficiently than air and convects less readily at the gap widths used in residential double glazing. This is a meaningful improvement in thermal performance without significant cost increase over an air-filled unit. Higher-specification units use krypton or xenon gas, which offer better performance than argon but at considerably higher cost.

Low-emissivity (low-E) coatings add a further improvement. A microscopically thin metallic coating applied to one of the inner glass surfaces reflects long-wave infrared radiation (heat radiation) back into the room rather than allowing it to pass through the glass. A good low-E coating can improve a double-glazed window's thermal performance by 30–50% compared with uncoated glass.

How Does Double Glazing Reduce Heat Loss?

The thermal performance of a window is measured by its U-value - the rate at which heat passes through the unit per square metre per degree of temperature difference, expressed in W/m²K. A lower U-value means better insulation.

U-value comparison:

• Single glazing: approximately 5.0–5.8 W/m²K
• Standard double glazing (air-filled): approximately 2.8–3.0 W/m²K
• Argon-filled double glazing with low-E coating: approximately 1.2–1.6 W/m²K
• Triple glazing with argon: approximately 0.6–0.8 W/m²K

UK Building Regulations require replacement windows to achieve a U-value of no more than 1.6 W/m²K, essentially requiring argon-filled double glazing with a low-E coating as a minimum standard.

The practical effect of this improvement is significant. Upgrading a single-glazed Victorian sash window to a modern argon-filled double-glazed unit reduces heat loss through that window by approximately 70-75%.

Across a whole house's worth of windows, this represents a meaningful reduction in heating bills and a significant improvement in comfort, cold spots next to windows disappear, condensation on the glass surface is dramatically reduced, and the internal surface temperature of the glass is much closer to room temperature.

Where the frame matters: The overall window U-value includes the frame as well as the glass. A high-performance glass unit fitted in a thermally poor frame loses much of the advantage.

How Long Should Double Glazing Last?

The lifespan of double glazing varies considerably depending on the quality of manufacture, installation, and maintenance. Well-made, properly installed double glazing in typical UK conditions should last 20-25 years before the sealed unit begins to fail.

Budget units from the mid-market of the 1990s and 2000s boom are now reaching the end of their effective lives.

• The sealed unit is the component that typically fails first. The seal around the perimeter of the double-glazed unit is the weakest point - it's subject to constant thermal expansion and contraction as temperatures change. When this seal fails, moist air enters the gap between the panes and condenses on the internal glass surfaces, producing the characteristic misty or clouded appearance that indicates a failed unit.

• The frame generally lasts longer than the sealed unit in modern uPVC windows - 25-35 years with reasonable care. Timber frames require more maintenance (painting or treating every 5–7 years) but can last considerably longer if well maintained.

• The mechanism, hinges, handles, and locking points, is the most frequently replaced component and can be maintained or replaced without affecting the frame or glass.

Signs Your Double Glazing Needs Replacing

Knowing when double glazing has reached the end of its useful life, rather than just needing maintenance, saves money by avoiding expensive repair attempts on units that need replacing.

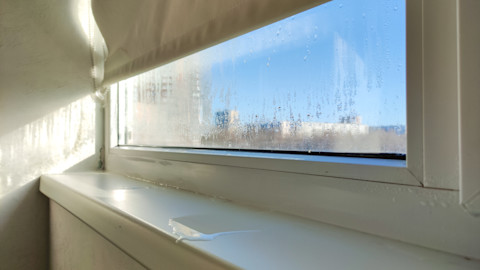

• Misting or condensation between the panes is the clearest sign that the sealed unit has failed. The seal has broken down, allowing moisture to enter the gap. Cleaning the external glass makes no difference - the condensation is inside the unit and can only be resolved by replacing the sealed unit or the whole window. See the MyBuilder double glazing repair cost guide for typical sealed unit replacement costs.

• Draughts around the window indicate either a failed perimeter seal between the frame and the opening, or a failed compression seal within the opening mechanism. Some draughts can be fixed by replacing the rubber seal or adjusting the mechanism without replacing the whole window.

• Condensation on the inside face of the glass (not between the panes) indicates that the window's U-value is insufficient for the room conditions, the inner glass surface is cold enough to cause condensation. This is a performance issue rather than a failure; it can be addressed by upgrading to a higher-specification unit or improving room ventilation.

• Difficulty opening or closing can indicate frame distortion (particularly in older uPVC that has become brittle) or mechanism failure. Have a window fitter assess before assuming full replacement is needed, mechanisms can often be replaced without a new frame.

Find a window fitter near you

Is Triple Glazing Better Than Double Glazing?

Triple glazing adds a third pane of glass and a second insulating gap, reducing the U-value to approximately 0.6-0.8 W/m²K compared with 1.2-1.6 W/m²K for good quality double glazing. It's consistently marketed as the premium upgrade - but whether it's worth the additional cost for a typical UK home is a more nuanced question.

Where triple glazing genuinely adds value:

• Properties in very cold climates or exposed locations where heat loss through windows is the dominant energy challenge
• Passive house and very-low-energy construction where achieving extremely low U-values across every element is the design objective
• Properties where noise reduction is a primary concern, the additional pane significantly improves acoustic performance beyond the modest improvement from double to a higher-spec double

Where the case is weaker:

• Most standard UK homes, where windows represent a relatively small proportion of total heat loss compared with roof and wall insulation
• Properties in moderate climates where the marginal U-value improvement from triple glazing doesn't justify the cost premium (typically 20-40% above equivalent double glazing)
• Properties where frame performance is the limiting factor - upgrading to triple-glazed units in a thermally poor frame doesn't achieve the expected whole-window improvement

The UK Energy Saving Trust's position is that triple glazing typically offers a modest incremental improvement for standard UK homes over good-quality double glazing, and the additional cost doesn't always produce a proportionate reduction in energy bills.

For a direct specification and cost comparison, see the MyBuilder double vs triple glazing guide.

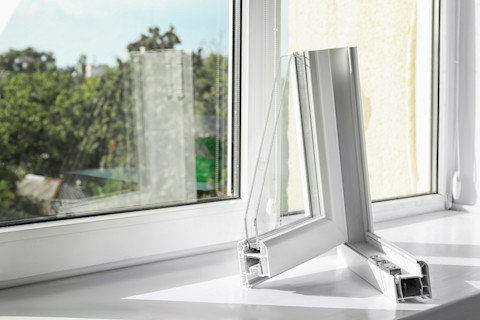

Double Glazing Options: Frame, Glass, and Gas Choices

Choosing double glazing involves decisions across several elements, each affects performance, appearance, and cost.

Frame Material

• uPVC is the most common frame material for UK residential windows - affordable, low-maintenance, good thermal performance with a multi-chamber profile, and available in a range of colours and finishes. Modern uPVC is considerably better quality than the frames installed in the 1980s and 1990s boom.

• Timber offers the most traditional appearance and suits period properties where uPVC looks incongruous. It requires more maintenance than uPVC (painting or treating periodically) but has good thermal performance and can be repaired rather than replaced when damaged.

• Aluminium is slim-profile and contemporary in appearance but has poor inherent thermal performance, aluminium conducts heat readily. Good aluminium windows use a thermal break (an insulating strip running through the frame) to reduce this conductance. Aluminium frames without a thermal break should not be used in thermally efficient installations.

• Composite frames typically combine aluminium externally (durable, low-maintenance, good appearance) with timber internally (warm, natural, good insulation) offering the best of both at a price premium.

Glass Specification

• Low-E coating: Standard on quality modern units - significantly improves thermal performance
• Solar control glass: Limits solar gain in south-facing windows to prevent overheating, at some cost to thermal performance
• Acoustic glass: Laminated glass with a PVB interlayer that improves sound reduction
• Obscured or patterned glass: For privacy in bathrooms and ground-floor overlooked windows

Gap Width and Gas Filling

A 16mm gap filled with argon is the standard specification for UK residential double glazing - it represents the optimal balance of thermal performance and unit thickness. Wider gaps don't improve performance proportionally and add weight; narrower gaps reduce the insulating effect.

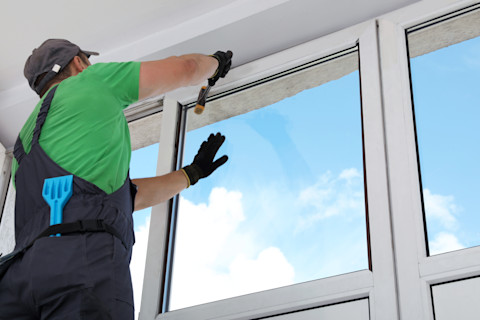

How to Fit Double Glazed Windows

Fitting double-glazed windows, replacing old windows with new double-glazed units, is a job that can be undertaken by a confident DIYer for straightforward casement or tilt-and-turn replacements, but it requires careful execution and understanding of the Building Regulations that apply.

Building Regulations notification:

In England and Wales, replacing windows triggers a requirement to notify local Building Control, unless the work is carried out by a FENSA-registered or Certass-registered installer.

FENSA-registered window companies self-certify compliance - if you DIY the installation or use a non-registered installer, you'll need to notify your local Building Control and obtain a completion certificate. This matters when you sell the property, solicitors require evidence of compliance.

The fitting process:

• Step 1: Measure carefully. Take measurements at multiple points across the opening, old houses are rarely perfectly square. Measure width and height at three points each and use the smallest dimension as the basis for ordering the window.

• Step 2: Remove the old window. Remove the opening sash or casement first, then unscrew or cut the old frame from the reveal. Work carefully around the surrounding plasterwork and masonry.

• Step 3: Prepare the opening. Clean the reveal, check for any damp or damaged masonry, and apply a bead of frame sealant to the outer edge of the reveal.

• Step 4: Fit the new frame. Insert the new frame, check it's square and level with packers, and fix to the reveal using appropriate fixings at the manufacturer's specified intervals.

• Step 5: Fit the glazed unit and mechanism. Install the sealed unit into the frame with glazing packers, fit beads to retain it, and install the opening sash and mechanism.

• Step 6: Seal and finish. Apply exterior mastic sealant around the perimeter of the frame. Internally, fill and make good around the frame with plaster or render as appropriate.

For the full cost context on professional window fitting, see the MyBuilder double glazing cost guide.

How to Find a Window Fitter

You can find and compare available window fitters near you on MyBuilder. Post your job with details of the window type, number of windows, and frame material preference - fitters in your area will respond with their approach and quotes.

When getting quotes, confirm that the installer is FENSA or Certass registered, ask for the whole-window U-value (not just the glass U-value), and confirm what the installation guarantee covers and for how long.

All tradespeople on MyBuilder undergo checks at registration, such as ID documents, company details, certifications for regulated jobs and skill assessments, allowing you to hire with confidence.

Find a window fitter near you

FAQs: Double Glazing

How Can I Tell If My Double Glazing Is Failing?

The clearest sign is misting or condensation between the glass panes - this means the sealed unit has failed and moisture has entered the gap. Condensation on the internal surface of the glass (not between the panes) indicates the window's thermal performance is insufficient for the room conditions rather than a unit failure.

Draughts suggest a seal or mechanism issue. See the MyBuilder double glazing repair cost guide for what unit replacement costs. You can browse completed window fitting projects on MyBuilder to see what good professional installation looks like.

Does Double Glazing Reduce Noise?

Yes, to a degree the two panes and the insulating gap reduce airborne sound transmission compared with single glazing. The improvement is meaningful but not dramatic for standard double glazing. If noise reduction is a primary requirement, acoustic glass (laminated, with a PVB interlayer) offers significantly better performance than standard double glazing, and triple glazing adds further improvement.

For seriously problematic noise, secondary glazing is sometimes the most cost-effective acoustic solution - see the MyBuilder secondary glazing cost guide.

Can I Replace Just the Glass in My Double Glazing?

Yes. In most cases the sealed unit can be replaced without replacing the entire frame. This is the appropriate repair for misted or failed units where the frame is still in good condition. A glazier can measure and replace the sealed unit, which is considerably cheaper than full window replacement. If the frame itself is distorted, degraded, or failing, full replacement is the more cost-effective long-term solution.

What Does FENSA Registration Mean?

FENSA (Fenestration Self-Assessment Scheme) is the government-authorised scheme that allows window installation companies to self-certify compliance with Building Regulations, bypassing the need for homeowner notification to local Building Control.

When a FENSA-registered installer fits your windows, they issue a FENSA certificate that documents compliance - the document solicitors request when you sell the property. Always ask for this certificate and keep it with your property documents.

Is Double Glazing Worth It for an Old House?

Yes. The thermal improvement from upgrading single glazing to modern double glazing with a low-E coating is substantial. The reduction in heat loss through windows (approximately 70-75% compared with single glazing), the elimination of cold draughts, the improvement in internal comfort, and the reduction in condensation make it one of the most impactful single upgrades available for older properties.

The payback period in energy savings depends on the property's heating costs and the number of windows, but the comfort improvement is immediate.
