uPVC Windows Rubber Seal Replacement Guide

A draught around a uPVC window or door is almost always a seal problem - and a seal problem is almost always fixable without replacing the whole window. This guide covers how to identify which seal has failed, how to buy the right replacement, and how to fit it correctly - for both windows and doors.

Table of Contents

1. Why uPVC Seals Fail
2. Types of uPVC Rubber Seals
3. How to Tell If Your Seal Needs Replacing
4. How to Measure and Order a Replacement Seal
5. How to Replace a uPVC Window Rubber Seal
6. How to Replace a Rubber Seal on a uPVC Door
7. When a Seal Problem Is Actually Something Else
8. When to Call a Window Fitter
9. FAQs: uPVC Seal Replacement

This guide covers seal identification, removal, replacement, and when a seal problem is actually a mechanism or frame issue, read through in order or jump to the step you need.

Why uPVC Seals Fail

The rubber seals on uPVC windows and doors are consumable components - they're designed to compress and flex millions of times over the window's life, and they degrade over time regardless of use. Understanding why helps set expectations: seal replacement is maintenance, not a failure of the original installation.

The main causes of seal failure are UV degradation (rubber exposed to sunlight becomes brittle and loses elasticity), thermal cycling (repeated expansion and contraction from temperature changes causes the rubber to harden and split over years), age-related compression set (rubber that has been permanently compressed eventually stops bouncing back), and physical damage from cleaning with harsh chemicals or abrasive products that dry out the rubber.

A well-maintained seal on a quality window should last 15-20 years. Budget seals or those in particularly exposed positions may need attention sooner.

Once a seal has hardened and lost its compression, no amount of cleaning or conditioning will restore it, replacement is the only fix.

Find a window fitter near you

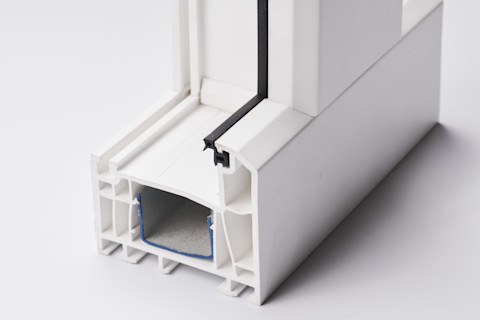

Types of uPVC Rubber Seals

Before ordering a replacement, it helps to understand which type of seal is failing - not all seals on a uPVC window or door are the same product, and fitting the wrong type produces a poor result.

• Bubble seal (compression seal): The most common type on uPVC windows. A hollow circular or D-shaped seal that compresses when the window closes, creating an airtight barrier between the frame and the sash (opening panel). This is the seal most likely to fail on a typical residential window — it's the one that takes repeated compression from every opening and closing cycle.

• Flipper seal (wiper seal): A flat, flexible seal with a thin 'flipper' that wipes across the glass or frame surface as the sash closes. More commonly found on sliding windows and on some door systems.

• Pile seal: A brush-type seal used on some sliding windows and most sliding patio door tracks - the fibres brush against the panel as it slides. Not rubber but often discussed alongside rubber seals as it serves a similar draught-exclusion function.

• Cill seal / outer frame seal: The seal between the fixed outer frame and the wall or sill. Typically a soft foam or rubber strip. Less commonly the source of draught problems than the compression seal, but worth checking on older windows.

The compression (bubble) seal is what most homeowners need to replace. If you're unsure, remove a small section of the seal in an inconspicuous location and take it to a trade window supplier, they'll match it from the cross-section profile.

How to Tell If Your Seal Needs Replacing

Before buying a replacement, confirm the seal is actually the problem and that the seal, rather than the mechanism or frame, needs attention.

• Physical inspection: Open the window or door fully and examine the seal around the perimeter of the sash. A healthy seal is soft, springy, and bounces back when pressed. A failing seal is hard, has lost its circular cross-section (flattened, cracked, or split), or has shrunk away from the corners leaving gaps.

• Paper test: Close the window on a strip of paper. If the paper pulls out easily with the window closed, the seal is no longer creating adequate compression at that point. Repeat at several positions around the frame.

• Light test: In a darkened room, hold a torch inside and check around the perimeter from outside. Any light showing through a closed window indicates a gap - either a failed seal or a misaligned sash.

• Draught test: Hold a lit incense stick or a damp hand near the closed window perimeter and move it slowly around. Air movement indicates the draught location.

If the seal is clearly intact but draughts are present, the issue may be a misaligned sash, worn hinges, or a mechanism that's no longer pulling the sash fully closed, see the "When it's not the seal" section below.

How to Measure and Order a Replacement Seal

Getting the right seal profile is the most critical step. uPVC rubber seals come in dozens of profiles, and fitting a slightly different profile produces a poor seal or a seal that won't fit the groove at all.

• Step 1: Identify the existing seal profile. Remove a short section (100-150mm) of the existing seal from an inconspicuous area - a corner or the top rail. Take this sample to a uPVC hardware supplier or trade glazing supplier. Most can match the profile from the sample cross-section.

• Step 2: Measure the total length needed. Measure the perimeter of the sash or frame section that needs resealing. Add 15-20% for corners and waste. Most seals are sold by the metre - buy slightly more than you need.

• Step 3: Check the frame profile if ordering online. If ordering online rather than from a trade supplier, you'll need to identify the frame manufacturer, many seals are profile-specific to Rehau, Veka, Eurocell, or Spectus frames. The frame manufacturer name is usually printed on the uPVC profile or can be identified from the window documentation.

Replacement seals are widely available from trade glazing suppliers, uPVC specialists, and online. Prices typically run £2-£8 per metre depending on the profile.

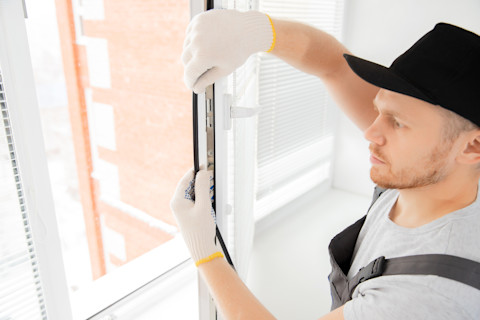

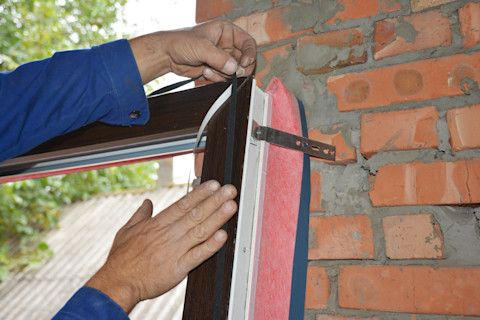

How to Replace a uPVC Window Rubber Seal

With the replacement seal in hand, the process is the same for most standard uPVC casement and tilt-and-turn windows.

Step 1: Remove the Old Seal

Start at a corner. Most bubble seals clip into a groove on the sash frame, they don't glue in place. Use a flat-bladed screwdriver or your fingernail to lift the edge of the seal out of the groove, then pull it free around the perimeter.

Work methodically, avoiding tearing the seal in the groove. If any adhesive is present (some older seals were stuck rather than clipped), use a plastic scraper to clean the groove without scratching the uPVC.

Step 2: Clean the Groove

Wipe out the groove with a damp cloth and a small amount of washing-up liquid. Remove any old adhesive residue, dirt, or degraded rubber fragments. Dry thoroughly. A clean groove ensures the new seal seats correctly.

Step 3: Fit the New Seal

Starting at the top corner of the sash, press the new seal into the groove. Work around the perimeter, pressing the seal firmly into the groove with your thumb or a small roller as you go. At corners, either cut the seal at a 45-degree mitre and join the two cut ends in the corner, or push extra length into the corner and allow the seal to fold naturally — both methods are used, and the mitre produces a cleaner result.

Step 4: Join the Ends

Where the seal completes its circuit, cut the end to butt neatly against the start. Apply a small dab of silicone adhesive or contact adhesive to the joint to secure it.

Step 5: Test the Closure

Close the window and check the compression around the perimeter. The sash should close without excessive force, and the seal should be visibly compressed uniformly around the frame.

How to Replace a Rubber Seal on a uPVC Door

The process for replacing the rubber seal on a uPVC door is the same as for a window, with a few additional considerations given the door's size and the additional seals involved.

uPVC doors typically have a compression seal around the door sash (the opening leaf) and often a secondary flipper or wiper seal at the threshold. Both may need replacement if the door is draughty.

The main practical difference is scale - a standard uPVC door has significantly more perimeter than a window, and the weight of the door means it doesn't flex. Ensure the door is fully open and secured before starting, and work systematically around the full perimeter rather than trying to reach around the door while it's partially closed.

For the threshold seal (at the bottom of the door), a door-bottom draught excluder may be fitted in addition to or instead of a rubber seal, these are attached to the bottom edge of the door leaf and can be replaced without touching the frame seals.

Note on multipoint lock doors: uPVC external doors use a multipoint locking system that pulls the door tight against the frame at multiple points when the key is turned.

When a Seal Problem Is Actually Something Else

Not every draught problem comes from a failed seal. Before buying replacement seals, ruling out these alternatives saves time and money.

Misaligned sash or door leaf:

If the door or window is visibly sitting unevenly in the frame - one side touching the frame, the other leaving a gap - the hinges may have dropped or the frame may have moved. Adjusting the hinge position (most uPVC hinges have lateral and vertical adjustment built in) is the fix, not replacing the seal.

Worn or failing mechanisms:

A multipoint lock that isn't pulling the door fully closed against the frame, or a window handle that no longer compresses the sash tightly, creates gaps that look like seal failure. Test by manually pushing the sash or door tight against the frame - if the draught disappears, the mechanism is the issue.

Failed glazing seal:

Draughts from around the glass unit (rather than around the frame perimeter) indicate a failing glazing bead seal or a unit that's moved in its glazing packers. This is a different repair.

Frame movement:

Older uPVC frames can distort slightly over time, particularly in exposed positions. A distorted frame that no longer sits square in the wall opening creates gaps that no seal can bridge.

See the MyBuilder double glazing cost guide for replacement window costs if the windows are due for renewal. For context on door seal performance, see our composite vs uPVC doors guide - the seal type is one of the key differences between the two door constructions.

When to Call a Window Fitter

Seal replacement is a realistic DIY repair for most standard uPVC windows and doors. There are situations where a professional window fitter is the more practical option.

You can find and compare available window fitters near you on MyBuilder. Post your job with details of the window type and what symptoms you're seeing - fitters will respond with their assessment and approach. For typical window fitting costs, see the MyBuilder window fitting cost guide.

All tradespeople on MyBuilder undergo checks at registration, such as ID documents, company details, certifications for regulated jobs and skill assessments, allowing you to hire with confidence.

Find a window fitter near you

FAQs: uPVC Seal Replacement

How Long Do uPVC Window Seals Last?

A quality compression seal on a well-made uPVC window should last 15-20 years. Seals on south-facing windows exposed to more UV degrade faster than those in shaded positions. Signs of imminent failure are hardness, visible cracking or splitting of the rubber surface, and a flattened cross-section that's lost its original shape.

Can I Use Any Rubber Seal as a Replacement?

No. The seal must match the profile groove in your specific frame. Too narrow and it won't stay in the groove; too wide and it won't seat properly; the wrong cross-section profile and it won't compress correctly against the sash.

Always try to match the original profile, either from a physical sample or by identifying the frame manufacturer and ordering the manufacturer-specified seal. You can browse window fitting projects on MyBuilder to see what professional window maintenance involves.

Will Replacing the Seal Stop Condensation Between the Panes?

No. Condensation between the glass panes is a different problem caused by the sealed double-glazed unit failing (the perimeter seal of the glass unit, not the frame rubber seal). Frame rubber seal replacement addresses draughts; misted or misty glass between the panes requires replacing the sealed unit.

How Do I Stop the New Seal from Falling Out?

A correctly-matched seal in a clean, undamaged groove should clip in and stay securely without adhesive. If the seal keeps coming out, the groove may be worn or the seal profile doesn't match precisely. A small amount of silicone adhesive applied to the back of the seal at intervals (particularly at corners) secures it without making future replacement difficult.

Is It Worth Replacing uPVC Window Seals or Just Getting New Windows?

It depends on the age and condition of the windows. For windows under 15 years old with otherwise sound frames and glazing, seal replacement is almost always the right call - it costs a fraction of new windows and solves the problem. For windows over 20-25 years old with multiple issues (failed seals, misted glass units, difficult-to-operate mechanisms), the cumulative cost of individual repairs approaches the cost of replacement and a like-for-like replacement on older windows makes more economic sense.
