How to Install CCTV Camera: A Step-by-Step Guide

A home CCTV system is a smart decision you can make to protect your home. This guide covers what you need for a home CCTV installation, how to plan camera positions effectively, the legal rules that apply to UK homeowners, and the step-by-step process for both wired and wireless systems.

Table of contents

1. What You'll Need for a Home CCTV System
2. Wired vs Wireless CCTV: Which Is Right for You?
3. Planning Your Camera Positions
4. The Legal Rules for Home CCTV in the UK
5. How to Install a Wired CCTV System: Step by Step
6. How to Install a Wireless CCTV System: Step by Step
7. Setting Up Recording, Storage, and Remote Access
8. When to Use a Professional CCTV Installer
9. FAQs: Installing CCTV at Home

From choosing a system and planning camera positions to the legal rules and step-by-step installation, this guide covers everything a UK homeowner needs to get a CCTV system up and running.

What You'll Need for a Home CCTV System

A home CCTV system has fewer components than most people expect - and getting clear on what each one does before you buy anything prevents the most common mistake, which is ending up with incompatible equipment or a system missing something critical.

Cameras:

The number and type of cameras depend on your property layout and what you want to cover. For most UK homes, two to four external cameras covering the main entry points (front door, back gate or back door, any side access) is a practical starting point.

Recording device:

A DVR (Digital Video Recorder) for wired analogue cameras, or an NVR (Network Video Recorder) for IP cameras (wired or wireless). Some wireless systems record to a cloud storage service rather than a local device — this can be convenient but involves ongoing subscription costs and raises data considerations.

Storage:

An HDD (hard drive) inside the DVR/NVR, or cloud storage. A 1TB drive typically holds 30 days of continuous footage from a 4-camera HD system, though motion-triggered recording significantly extends this.

Cables (wired systems):

Coaxial cable for analogue cameras, or Cat5e/Cat6 for IP cameras. Cable length should be planned before purchase.

Power:

Most wired CCTV cameras use PoE (Power over Ethernet) for IP systems, or a separate power supply for analogue. Wireless cameras typically use mains power via an adapter (plug-in) or battery - the battery option removes the need for a power cable but requires regular recharging.

Mounting hardware:

Brackets, screws, and rawlplugs for fixing cameras to walls, soffits, or fascias. Most camera kits include basic mounting hardware.

Optional:

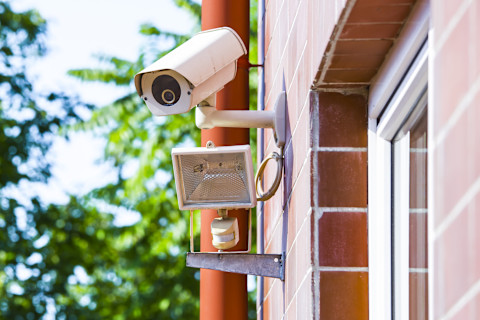

External floodlights triggered by camera motion detection, video doorbell integration, and smart home connectivity. If you're considering pairing CCTV with an alarm system, see the burglar alarm installation cost guide for context on combined security system costs.

Find a CCTV installer near you

Wired vs Wireless CCTV: Which Is Right for You?

The choice between wired and wireless is the most significant decision in planning a home CCTV system, and neither is universally better - they suit different situations.

Wired Systems

They use cables to transmit footage and, in PoE systems, to carry power to the camera. They're more reliable than wireless (no signal interference, no Wi-Fi dependency), produce better image quality in most cases, and are harder to defeat - a determined intruder can potentially knock a wireless system offline by jamming the signal or cutting Wi-Fi.

The limitation is installation complexity: cables need to be routed from cameras to the recorder, which typically means drilling through external walls and running cables along walls, ceilings, and through roof spaces.

Wireless Systems

Wireless systems transmit footage over Wi-Fi and are powered either by mains or battery. They're significantly easier to install - mount the camera, connect to Wi-Fi, and the system is operational. Battery-powered wireless cameras eliminate the need for any cabling at all.

The limitations are Wi-Fi dependency (range and signal quality affect reliability), battery maintenance for battery-powered models, and generally slightly higher ongoing costs if cloud storage is used.

For most homeowners, a wireless system is the practical choice for a DIY installation - the simplicity and flexibility are significant advantages and the reliability limitations are manageable in a typical residential setting. Wired systems are worth the additional installation complexity for higher-risk properties, larger installations, or where a professional is handling the installation anyway.

Planning Your Camera Positions

Effective camera planning is the most important stage of a CCTV installation. A camera pointed in the wrong direction or positioned too high to capture faces provides limited value regardless of how good the equipment is.

Identify your priorities first. Walk around the property and identify the points of access - front door, back door, side gate, garage, garden access. These are the locations that generate actionable footage. Coverage of every surface of the property is neither achievable nor necessary; effective coverage of access points is.

Key positioning principles:

• Height matters. Cameras mounted too high (above 2.5–3 metres) capture the tops of heads and produce footage that doesn't identify individuals. For the most useful footage, cameras should be positioned at 2–2.5 metres to capture faces clearly at the primary detection zone.

• Angle to the entry point, not along the wall. A camera mounted directly above a door captures only the top of the head of anyone at that door. Position the camera to the side, angling toward the door from approximately 30-45 degrees, to capture face-level detail.

• Cover the approach, not just the door. A camera positioned to capture someone approaching a door - on the path, driveway, or gate - gives more warning and better footage than one positioned to capture what happens at the door itself.

• Avoid pointing into bright light. Cameras positioned to look directly into the sun or toward exterior lights will be washed out during the day. Check the camera's field of view against the likely lighting conditions at the time of day most relevant to security (early morning, evening).

• Check Wi-Fi signal at each planned location (for wireless systems) before finalising positions. A camera with a weak Wi-Fi signal produces unreliable or poor-quality footage.

The Legal Rules for Home CCTV in the UK

UK homeowners installing CCTV for their own property security are generally subject to lighter regulation than businesses, but there are specific rules worth understanding to avoid complaints and potential legal issues.

What you can film:

Your own property - garden, driveway, entrance to your home - is clearly within scope. Filming your own front door and the path immediately approaching it is acceptable even if that path is also used by neighbours.

What requires more care:

Any camera that captures footage of neighbours' gardens, driveways, or windows, or that captures significant areas of public space (a street, footpath, or park) goes beyond purely private use. Under UK data protection law (the Data Protection Act 2018 and UK GDPR), filming areas beyond your own property brings your system within the scope of data protection obligations - technically requiring you to register with the Information Commissioner's Office (ICO) if footage captures third parties.

In practice for domestic use:

The ICO acknowledges that most home CCTV used purely for personal home security falls within a domestic exemption. However, the guidance is clear that cameras should be positioned to minimise capture of public areas and neighbours' property where possible. Point cameras at your own access points, not at your neighbour's driveway or garden.

CCTV signs:

If your cameras capture any area beyond your own property, displaying a CCTV warning sign is good practice and may be required under data protection guidance. Signs should be visible to anyone approaching the property.

The Information Commissioner's Office (ICO) publishes guidance for domestic CCTV users, which is worth reading if your system captures any areas beyond your own garden. For wider context on home security options alongside CCTV, see the home security installation cost guide.

Sharing footage: If footage captures a crime or incident involving a third party, you may share it with the police. Sharing footage online, posting to social media or community groups, without strong reason raises data protection issues and should be done with caution.

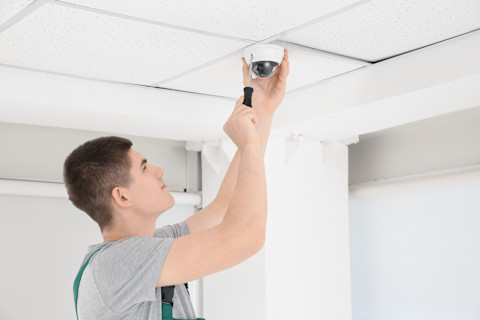

How to Install a Wired CCTV System: Step by Step

A wired installation takes more planning than wireless, because cable routing needs to be decided before anything is drilled or mounted.

Step 1: Plan cable routes.

Before any installation work, map the route from each camera position back to the recorder location. Cables typically run along wall/ceiling junctions, through roof spaces or loft, and down internal walls to the recorder.

Measure the total cable run needed for each camera, adding 10-15% for routing. Concealing cables inside the wall cavity or in trunking produces a cleaner finish.

Step 2: Mount the cameras.

Mark the mounting positions on the wall at the planned height and angle. Use a spirit level to ensure the bracket is square. Drill and plug the fixing points, and attach the bracket. Feed the cable through the wall or into the bracket's cable management channel.

Step 3: Run the cables.

Route cables from each camera position to the recorder location. Where cables pass through external walls, seal around them with external-grade mastic to prevent water ingress. Use cable clips or trunking to fix cables neatly along walls and ceilings.

Step 4: Connect to the recorder.

Terminate each camera cable at the DVR/NVR. Most IP cameras use standard RJ45 connectors; analogue cameras use BNC connectors. Install the HDD in the recorder if not pre-installed.

Step 5: Power up and configure.

Connect the recorder to a monitor, power up, and follow the system's setup wizard to configure recording schedules, motion detection zones, and alerts.

Step 6: Test coverage.

Check the live feed from each camera and adjust angles as needed. Walk through each camera's field of view to confirm coverage of the intended area. Test motion detection triggers.

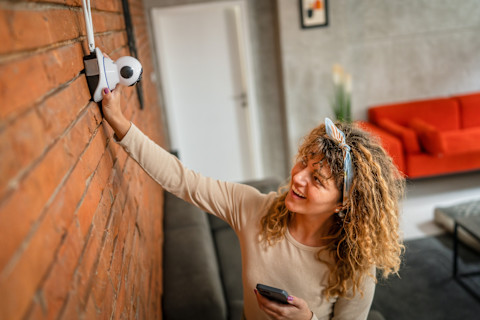

How to Install a Wireless CCTV System: Step by Step

Wireless installation is considerably simpler than wired, particularly for battery-powered cameras.

Step 1: Test the Wi-Fi signal at each planned camera position.

Before fixing anything, confirm the Wi-Fi signal at each planned location is adequate. Move around the external wall with your phone connected to the Wi-Fi network and check signal strength at the planned camera height.

Step 2: Mount the cameras.

Fix the mounting bracket at the planned position using the supplied hardware. Most wireless cameras have a magnetic or ball-joint mounting that allows fine adjustment of angle after fixing.

Step 3: Connect to the network.

Follow the manufacturer's app setup process to connect each camera to your home Wi-Fi network. Most systems use a QR code scan or guided setup in the camera's mobile app.

Step 4: Configure the system.

Set up motion detection zones (to reduce false alerts from moving trees or passing cars), recording schedules, and push notification settings on the app.

Step 5: Test coverage.

Check the live feed from each camera in the app and adjust angles as needed. Walk through each camera's zone to confirm motion detection is triggering correctly.

Battery maintenance: For battery-powered cameras, most manufacturers indicate battery life of 3-6 months on a charge under typical motion detection usage. Set a calendar reminder to check battery levels monthly rather than discovering a camera has been offline.

Setting Up Recording, Storage, and Remote Access

Once cameras are installed and connected, configuring the recording and access settings determines how useful the system is in practice.

Continuous recording vs motion-triggered:

Continuous recording captures everything but consumes storage rapidly. Motion-triggered recording saves significantly more storage and makes reviewing footage much more practical - you're not reviewing hours of an empty garden. Most systems allow both modes simultaneously on different cameras.

Storage:

For a 4-camera system with motion-triggered recording, 1TB of local storage provides several weeks of footage under typical usage. Enable automatic overwrite of the oldest footage when storage is full.

Remote access:

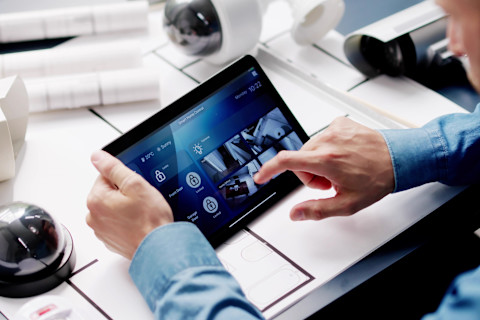

Almost all modern systems, wired or wireless, offer a mobile app allowing live viewing and recorded footage access from anywhere. Set this up during initial configuration - it's one of the most practically useful features, particularly for checking on a property while away. See the guide to home security systems for a broader overview of smart home security options that work alongside CCTV.

Alerts: Configure motion detection alerts to push to your phone. Fine-tune the detection zones to reduce false alerts - a camera covering a busy road with detection set across the full frame will generate constant alerts from passing vehicles.

When to Use a Professional CCTV Installer

A professional can complete this in a fraction of the time and without the trial and error that comes with working in unfamiliar roof or wall structures. You can find and compare available security system installers near you on MyBuilder.

All tradespeople on MyBuilder undergo checks at registration - such as ID documents, company details, certifications for regulated jobs and skill assessments - allowing you to hire with confidence.

Find a CCTV installer near you

FAQs: Installing CCTV at Home

Do I Need Planning Permission to Install CCTV at Home?

No, for standard home security CCTV on a residential property. Planning permission is not required for most domestic CCTV installations. The exception is listed buildings, where any external alteration may require listed building consent. Check with your local planning authority if you're unsure.

Can My Neighbour Object to My CCTV Cameras?

A neighbour cannot legally object to cameras installed on your own property that are primarily focused on your own property. If your cameras capture significant areas of their property, garden, or windows, they may raise a data protection complaint with the ICO.

The practical advice is to position cameras to capture your own access points rather than adjacent properties - this is both better practice and produces more useful footage for your own security purposes. You can browse completed CCTV installations on MyBuilder to see typical professional positioning approaches.

What Is the Best Position for a CCTV Camera?

At 2-2.5 metres height, positioned to capture faces at a 30–45 degree angle to the primary access point, with the camera angled to capture the approach to the access point rather than just the door or gate itself. Avoid pointing cameras into direct sunlight or toward exterior lights that will cause exposure problems.

How Long Do CCTV Recordings Keep?

This depends on your storage capacity and recording settings. A 1TB hard drive with a 4-camera HD system on motion-triggered recording typically stores 3-6 weeks of footage before the oldest recordings are overwritten. For most domestic purposes, 30 days of rolling storage is adequate. Cloud storage systems charge subscription fees that typically vary based on the retention period chosen.

Does CCTV Reduce Home Insurance Premiums?

Some home insurance providers offer reduced premiums for properties with documented security measures including CCTV. Check with your specific insurer - the reduction varies by provider and policy type, and not all insurers offer this. Some require the system to meet specific standards (NSI or SSAIB certification of the installation) to qualify for a discount, which professional-installed systems are more likely to achieve than DIY.
