EV Charger Installation Requirements in the UK

Before your EV charger can go on the wall, there are a handful of things your property needs to have in place, and a few rules worth knowing about.

This guide covers everything your home needs to meet before installation, including the rules around planning permission, parking, electrical capacity, and what you need if you're renting.

Table of contents

1. Do You Need Planning Permission to Install an EV Charger?
2. Do You Need Permission From Your Landlord?
3. Parking Requirements for a Home EV Charger
4. Electrical Requirements for a Home EV Charger
5. UK Driveway EV Charger Rules
6. Where Can and Can't You Install a Home EV Charger?
7. Tethered vs Untethered Chargers: Which Should You Choose?
8. Finding an Electrician for Your EV Charger Installation
9. FAQs: EV Charger Installation Requirements

Before you book an installer, it's worth understanding what your home actually needs - this guide covers the electrical requirements, parking rules, and potential obstacles upfront.

Do You Need Planning Permission to Install an EV Charger?

For the vast majority of homeowners in the UK, no. Planning permission is not required. Standard home EV charger installations fall under permitted development rights, which means you can go ahead without submitting an application to your local council.

There are two exceptions worth knowing about:

• Listed buildings. If your home is listed, any external alterations, including mounting a charger on an outside wall, may require listed building consent. Contact your local planning authority before booking anything.

• Conservation areas. Properties in designated conservation areas can sometimes face additional restrictions on external changes. Again, it's worth checking with your local council first, as the rules can vary between areas.

If neither applies to you, you're free to proceed. Your installer will confirm this as part of their initial assessment.

Do You Need Permission From Your Landlord?

Yes. If you rent your home, you need written permission from your landlord before any EV charger installation can take place. This applies regardless of property type: house, flat, or anything in between.

The good news is that most landlords are willing to agree.. In practice, most come around quickly once they understand that:

A government grant of up to £500 is available for eligible tenants, which significantly reduces or eliminates the financial cost to either party - see our EV charger installation grant guide for full details A home EV charger is an increasingly desirable feature that adds long-term value to the property The installation is carried out by a registered electrician and fully certified

Get any agreement in writing before you apply for the grant. The OZEV grant for renters and flat owners specifically requires written permission from your landlord or freeholder to be in place before you submit your application, not just before installation. Your electrician will also need to see this confirmation before they can proceed.

If you want a full walkthrough of the installation process itself, our guide to installing an EV charger at home covers that in detail.

Parking Requirements for a Home EV Charger

This is the requirement that catches the most people out. A home EV charger needs to be installed somewhere with a dedicated, private parking space, and the charger needs to be mounted on a wall or structure within a reasonable cable distance of where your car parks.

• Off-street parking: A driveway, a garage, a carport, or a - private parking space - is the standard scenario. The charger goes on the nearest suitable wall, and a cable run connects it back to your consumer unit.

• On-street parking only: If you have no off-street parking at all, it doesn't automatically rule out a home charger, but it does change what's available. There is a specific government grant of up to £500 for households in this situation, covering cross-pavement charging solutions such as a charging gully - a channel cut under the pavement that allows a cable to run from your property to a kerbside socket.

• Shared car parks: If you live in a flat with a communal car park and have a designated bay, you may still qualify for the renter and flat owner grant. The key is that you must have a legal entitlement to a specific, designated space and your installer will confirm whether this meets the OZEV grant criteria.

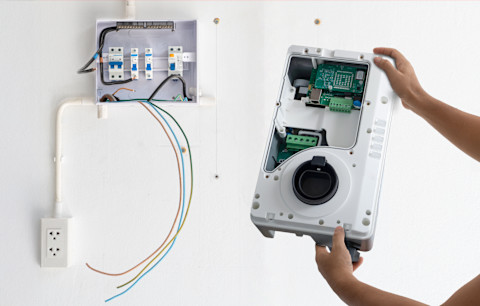

Electrical Requirements for a Home EV Charger

A standard 7kW home EV charger requires a dedicated circuit connected to your consumer unit, with a main fuse rated between 60 and 100 amps. Most modern UK homes meet this without any additional work.

The things that can complicate the electrical side include:

• Older consumer units. Fuse boards that are out of date or don't have sufficient spare capacity may need replacing before a charger can be safely added. A consumer unit upgrade typically costs between £400 and £800 (sometimes more for complex jobs) on top of the charger installation - worth checking upfront rather than finding out on the day. For a full breakdown of what installation costs in the UK, see our EV charger installation cost guide.

• Cable run distance. The further the charger is from your consumer unit, the more cabling is needed. Installers typically work comfortably within a 15-metre run; anything beyond that adds to the labour and materials cost.

• Wi-Fi signal. Smart chargers, which are now required for any OZEV grant-eligible installation, need a reliable Wi-Fi connection to communicate with the grid, enable scheduling, and support app control. Most homes are fine, but if your parking area is at the far end of a long garden or in a detached garage, it's worth checking signal strength before choosing a charger model. Some units also support 4G as a backup.

• DNO approval. For a standard 7kW home charger, your installer notifies your local Distribution Network Operator (DNO) after the work is complete, so this generally doesn't add a waiting period. If you're installing a charger above 7kW, the DNO needs to approve the installation before work begins, which can add a few weeks to the timeline. Either way, your installer handles this for you.

UK Driveway Electric Vehicle Charger Rules

If you're installing a charger on a driveway, the positioning requirements are fairly straightforward. Your installer will follow these as standard, but it's helpful to know what they're working with:

The charger must be mounted between 750mm and 1,200mm above ground level Your installer will confirm any setback requirements that apply to your specific property There must be a clear, safe route for the cable to run from the charger to your consumer unit The unit itself must be weatherproof and suitable for outdoor installation - all chargers on the OZEV-approved products list meet this standard

For installations in a garage or covered car port, the same general rules apply, though the positioning requirements are slightly more flexible when the unit isn't directly exposed to the elements.

Where Can and Can't You Install a Home EV Charger?

Knowing where a charger can and can't go saves a lot of back-and-forth when you're getting quotes.

The short answer is that if you have a private parking space and a suitable wall nearby, you're almost certainly fine. The situations that cause problems tend to involve shared structures, public land, or properties with additional restrictions.

Where installation is generally possible:

• On the external wall of your house, adjacent to a driveway
• Inside or on the wall of a private garage
• On a carport structure, provided it's structurally sound
• On a boundary wall or fence, if it's within cable distance and the structure can support the unit

Where installation is not permitted:

• On public pavements, streets, or any public right of way
• On shared walls or structures in multi-unit buildings without the relevant permissions from the building owner or management company
• Across a pavement via a surface cable (a cross-pavement gully solution is required instead)
• In rented properties without written landlord consent
• On listed buildings or in conservation areas without the relevant approvals

If your situation doesn't fit neatly into any of these categories, the best thing to do is get an installer out to survey the property. They'll tell you quickly what's feasible. You can find electricians in your area on MyBuilder. Post your job, hear from those who are available and interested, and browse profiles and reviews before deciding who to contact.

Find an EV charger installer near you

Tethered vs Untethered Chargers: Which Should You Choose?

This is one of the first decisions you'll make when choosing a home charger, and it's simpler than it sounds.

Tethered chargers have a fixed cable permanently attached to the unit. You just grab the cable and plug in, nothing to carry, nothing to store. The downside is that the cable is fixed to one connector type, so if you change your car in the future and the new one uses a different connector, you'll need the cable swapped (though this is a straightforward job for an electrician).

Untethered chargers have a socket but no fixed cable. You use whichever cable is compatible with your car and store it yourself when it's not in use. This gives you more flexibility if you have multiple EVs with different connectors, or if you're likely to change cars.

For most households with a single EV, a tethered charger is the more convenient choice day-to-day. If flexibility matters more than convenience, untethered makes sense.

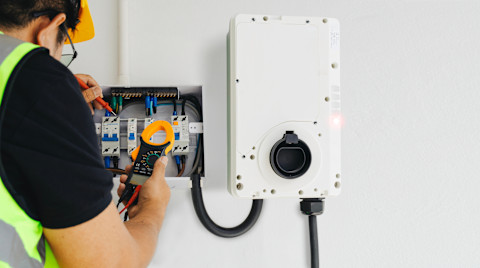

Finding an Electrician for Your EV Charger Installation

Meeting the requirements above is one thing, but finding the right person to carry out the work is the next step. EV charger installation is notifiable electrical work under Part P of the Building Regulations, which means it must be carried out by a registered electrician who can self-certify the job. Look for someone registered with NICEIC, NAPIT, SELECT (in Scotland) or another government-approved competent person scheme.

If you're planning to claim the OZEV government grant, your installer also needs to be OZEV-registered. You apply for the grant yourself through the OZEV portal, and your OZEV-registered installer submits the claim after the work is complete.

When getting quotes, it's worth confirming:

NICEIC, NAPIT, SELECT, or other approved competent person scheme registration OZEV registration (if applying for the grant) What's included in the quote - unit, cabling, consumer unit connection, Electrical Installation Certificate, and DNO notification should all be covered Whether they'll handle the DNO application on your behalf (most do as standard)

You can find and compare available electricians in your area on MyBuilder. Browse profiles, check reviews from previous customers, and get in touch with those who are interested in your job.

Compare electricians for my EV charger

FAQs: EV Charger Installation Requirements

Do EV Chargers Need to Be Installed in a Garage?

No, a garage is one option, but it's not a requirement. Many home EV chargers are installed on an external wall adjacent to a driveway or on a boundary wall. What matters is that there's a suitable surface to mount the unit, a clear cable route to the consumer unit, and a private parking space within reach.

A garage can offer extra weather protection, but a well-positioned outdoor charger on a quality mount is perfectly adequate for most households.

What Building Regulations Apply to EV Charger Installation?

EV charger installation falls under Part P of the Building Regulations (electrical safety in dwellings). This means the work must be carried out by a registered electrician who can self-certify the installation.

You'll receive an Electrical Installation Certificate on completion, which confirms the work meets the required standard. No separate building regulations application is needed when a competent person-registered electrician carries out the work.

Can I Install an EV Charger If I Live in a Flat?

Yes, in many cases. If you own your flat or rent it, you may be eligible for the OZEV government grant for renters and flat owners, provided you own an eligible electric vehicle and you have a designated private parking space. You'll also need written permission from your landlord or freeholder before you apply for the grant.

If you live in a block with shared communal areas or parking infrastructure, you'll also need consent from the building's freeholder or management company before any installation goes ahead.

What Happens If My Home Doesn't Meet the Electrical Requirements?

Your installer will identify any shortfalls during the pre-installation survey. The most common issue is a consumer unit that needs upgrading, either because it's too old or doesn't have the spare capacity for an additional circuit.

A typical upgrade adds £400–£800 to the overall cost, and isn't covered by the OZEV grant. Getting this assessed upfront means no surprises on installation day.

Does the Type of EV I Drive Affect the Installation Requirements?

Not really. The installation requirements for a home charger are largely the same regardless of which EV you drive. Where your car does come into it is the choice of charger connector type (for tethered units) and the maximum charging speed your car can accept.

Most EVs on sale in the UK today use a Type 2 connector and can accept 7kW charging, which is what a standard home charger delivers. Your installer will confirm compatibility when they survey the property.

---

Disclaimer: The information in this guide reflects publicly available guidance and typical UK pricing at the time of writing. Grant rates, eligibility, and installation costs can change without notice, and we make no warranty as to their current applicability. For the latest official guidance, see the UK government's guidance on electric vehicle chargepoint grants. For pricing specific to your property, obtain quotes from an electrician. If you intend to claim the grant, your installer will also need to be OZEV-authorised.This article is for general information only and does not constitute professional advice.
