A Guide to Driveway Drainage

Table of contents

1. Why Driveway Drainage Matters - and What the Rules Say
2. Channel Drains: How They Work and Where to Use Them
3. Load Ratings for Driveway Channel Drains
4. How to Install a Driveway Channel Drain
5. Sloping Driveway Drainage Solutions
6. Soakaways: What They Are and When to Use One
7. Permeable Driveway Surfaces as a Drainage Solution
8. Driveway Drainage Costs
9. How to Find a Driveway Installer
10. FAQs: Driveway Drainage

Read through in order for the complete picture, or jump to the section most relevant to where you are.

Why Driveway Drainage Matters - and What the Rules Say

Surface water from driveways has to go somewhere. Left unmanaged, it either soaks into the ground beneath, weakening the sub-base and causing cracking over time, or it runs off the surface towards foundations, into the road, or onto neighbouring land.

Since 2008, any new front garden driveway in England larger than 5 square metres needs planning permission if the surface is impermeable and no drainage provision is in place. The rule is straightforward in practice: use a permeable surface (gravel, resin bound, or permeable block paving) and no planning application is needed.

Use a non-permeable surface (tarmac, concrete, or standard block paving) and you'll need either adequate drainage directing water away from the road, or planning permission.

Note: The SuDS rules apply to front garden driveways in England. Scotland, Wales, and Northern Ireland operate under different rules. Rear driveways and off-road parking areas are generally not subject to the same requirement, but check with your local authority if in doubt.

Find a driveway installer near you

Channel Drains: How They Work and Where to Use Them

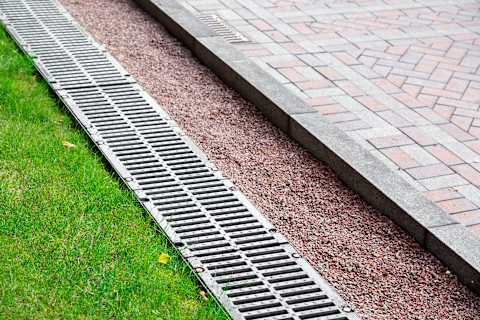

Channel drains, also called linear drains or trench drains, are the most widely used drainage solution for domestic driveways. A channel drain is a long, narrow preformed channel, typically made from polymer concrete or HDPE plastic, set flush with the driveway surface with a grated opening along the top.

Water flows across the driveway surface, enters through the grate, runs along the channel, and exits through an outlet pipe connecting to an underground drainage system, either the surface water drain, a soakaway, or a lawn area.

The key advantages are that they're effective across the full width of the driveway in a single run, they're relatively unobtrusive, and they're well-suited to both flat and gently sloping driveways where water doesn't naturally flow towards a collection point.

Where to position them:

• At the foot of a sloping driveway, between the driveway and the pavement or road - this is the most common placement, intercepting all water running down the slope before it reaches the public highway
• Across the garage entrance, protecting the garage floor from water ingress
• At the base of a retaining wall where a level change creates a collection point for runoff
• Across the full width of the driveway at intervals on very long drives where water volume builds up significantly before reaching a single collection point

The channel must be set 2-3mm below the finished driveway surface level so water flows into it naturally rather than over it. It must also slope towards the outlet, most modern systems use pre-sloped channels that build in a gradient without requiring complex grading during installation.

Load Ratings for Driveway Channel Drains

Channel drains are rated by their load-bearing capacity, and selecting the correct rating for a driveway is important, an undersized drain will fail under vehicle traffic. Ratings are classified under the EN 1433 standard:

• Class A15: Rated to 1.5 tonnes. Suitable for pedestrian areas and patios only - not for driveways
• Class B125: Rated to 12.5 tonnes. The standard rating for domestic driveways - suitable for cars and light vans
• Class C250: Rated to 25 tonnes. Used in commercial car parks and areas with heavier vehicle access
• Class D400: Rated to 40 tonnes. For main roads and areas with heavy goods vehicle traffic

For a standard residential driveway, Class B125 is the correct specification. The grate material, typically plastic, galvanised steel, or cast iron, affects appearance and durability but doesn't change the load classification.

Cast iron grates are the most durable and suit traditional properties; plastic grates are lower-cost and adequate for most domestic applications.

How to Install a Driveway Channel Drain

Installing a channel drain on an existing driveway is more involved than fitting one during a new installation, since it requires cutting into an existing surface. For a new driveway, the channel is positioned and set in concrete during the build, which is considerably more straightforward.

The installation process for an existing driveway:

Step 1: Mark and cut the trench.

Mark a straight line across the driveway at the intended drain position. Use a diamond-bladed angle grinder or circular saw to cut cleanly through the surface material, tarmac, concrete, or block paving. For block paving, the blocks can be carefully removed and reused. For tarmac and concrete, the cut section is removed.

Step 2: Excavate the trench.

Dig out the trench to accommodate the channel drain depth plus 100mm of concrete beneath it. Channel drain channels typically require a trench 200-300mm deep depending on the channel unit height.

Step 3: Connect the outlet pipe.

The channel connects to a 110mm underground drainage pipe via an outlet in the channel body, either a bottom outlet or an end outlet. The pipe runs to the discharge point: the surface water drain, a soakaway, or an approved dispersal area. This underground pipe must be laid on a fall of at least 1:80 to ensure water flows freely.

Step 4: Lay the channel in concrete.

Mix concrete (a standard C20 mix is appropriate for domestic applications) and pour it into the trench. Set the channel into the concrete to the correct height, 2–3mm below the finished surface level, and check that the channel slopes adequately towards the outlet. The concrete haunching on both sides of the channel (100mm wide minimum) secures it in place and prevents movement under vehicle loads.

Step 5: Reinstate the surface.

Once the concrete has cured (allow at least 24 hours), reinstate the surface material on both sides of the channel. For block paving, rebed the blocks with sharp sand. For tarmac, compact a cold-lay or hot tarmac patch flush with the existing surface.

Step 6: Fit the grate.

Clip or lock the grate into place on the installed channel.

Worth knowing before starting: If the drain connects to the public surface water sewer, you'll need approval from your local water authority under the Water Industry Act. Connecting to a soakaway on your own land doesn't require this approval, but the soakaway itself must be sited at least 5 metres from any building foundation.

Compare driveway installers near you

Sloping Driveway Drainage Solutions

Sloping driveways present specific challenges because water accelerates as it runs downhill, increasing in volume and speed by the time it reaches the bottom.

A standard channel drain at the foot is the most common and effective solution, but on steeper or longer slopes, additional measures may be needed.

Single channel at the foot of the slope works well for most residential sloping driveways, all the water that has run down the surface is intercepted at the bottom before it reaches the pavement or road. The channel must be sized to handle the peak flow from the entire driveway catchment area.

Multiple channels at intervals on very long or steep driveways break the catchment into sections, reducing the volume arriving at any single point. This is most relevant for driveways longer than 15-20 metres where the accumulated flow would exceed the capacity of a single standard residential channel.

Edge channels or kerb drains along the sides of the driveway intercept water running off the edges rather than across the surface - useful where the driveway slopes laterally as well as longitudinally, or where the edges aren't well-contained.

Permeable surface as a drainage solution addresses the problem differently, rather than intercepting and diverting runoff, a permeable surface allows water to pass through and infiltrate into the ground beneath. On a sloping driveway, this requires the sub-base to be capable of absorbing the water rather than allowing it to migrate along the slope below the surface.

Retaining walls and surface grading are relevant where the driveway sits significantly above or below the surrounding land. Surface grading, shaping the driveway surface to direct water to collection points, is built into the original installation rather than added later, which is why drainage planning at the design stage matters.

Soakaways: What They Are and When to Use One

A soakaway is an underground chamber or crate structure that receives drained surface water and disperses it gradually into the surrounding ground. It's the most common discharge point for residential driveway drainage in areas where connecting to the surface water sewer isn't practical or permitted.

Modern soakaways for driveway drainage typically use plastic crate systems (modular plastic units that create a large void for water storage) or traditional rubble-filled pits. The plastic crate systems are more efficient per cubic metre, easier to install, and more durable than rubble over time.

When a soakaway is appropriate:

• The ground has adequate permeability - clay soils drain poorly and may not be suitable
• The soakaway can be sited at least 5 metres from any building foundation and at least 2.5 metres from a boundary
• The local water table isn't so high that the soakaway would be permanently saturated

When it isn't appropriate:

• Clay-heavy soils where ground permeability is too low - water won't disperse and the soakaway will overflow
• Where the water table is close to the surface, particularly in lower-lying areas
• Where proximity to foundations or boundaries doesn't allow adequate separation

A percolation test, digging a small trial pit and measuring how quickly water drains from it, is the reliable way to assess whether a soakaway will work on your site before committing to one. A drainage or driveway installer can carry this out as part of a drainage assessment.

Permeable Driveway Surfaces as a Drainage Solution

The most complete drainage solution for many driveways isn't a drain at all, it's a surface that allows water to pass through it into a permeable sub-base and disperse naturally into the ground. For homeowners on suitable ground, this approach eliminates runoff entirely and is automatically SuDS-compliant.

For a full comparison of surface types, costs, and drainage properties, see our driveway surface options guide. For design inspiration alongside the practical considerations, see the MyBuilder driveway ideas article.

Gravel

This is the simplest permeable option - water passes through the voids between stones directly into the sub-base. The main limitation for drainage purposes is that heavily trafficked areas compact over time and reduce permeability.

Resin Bound

Resin paving is a permeable surface that looks considerably more polished than gravel. The resin encapsulates aggregate stones but leaves interconnected voids between them, allowing water to pass through at rates of up to 600 litres per square metre per minute in well-installed systems.

Permeable Block Paving

Permeable block paving uses wider joints filled with angular gravel rather than sand, allowing water to drain through the joint structure into a permeable sub-base. The blocks themselves are impermeable but the system as a whole is SuDS-compliant if properly specified.

The critical factor for all permeable surfaces is the sub-base specification. A permeable surface over a standard compacted hardcore sub-base doesn't drain effectively, the sub-base must use open-graded aggregate (20mm clean angular stone, not MOT Type 1 which is dense-graded and limits permeability). Getting the sub-base right is the element most likely to be compromised in a cost-cutting installation.

Driveway Drainage Costs

The cost of drainage depends significantly on what's being installed and whether it's part of a new driveway build or retrofitted to an existing surface.

• Channel drain installation as part of a new driveway build typically adds £300–£700 to the overall project cost, depending on the length of drain required and how far the outlet pipe needs to run to reach a soakaway or drain connection.

• Retrofitting a channel drain to an existing driveway costs more — cutting into the existing surface, excavating, installing the channel, reinstating the surface, and connecting to drainage typically costs £800–£1,500 for a standard residential driveway, depending on surface material and run length.

• Soakaway installation costs £1,000-£2,500 depending on size, depth, and ground conditions, including the plastic crate system, excavation, and backfill.

For full driveway installation pricing including drainage, see the MyBuilder driveway cost guide. For surface-specific pricing, see the tarmac driveway cost guide and the resin bound driveway cost guide.

How to Find a Driveway Installer

Drainage is often where corners get cut in driveway installations, particularly sub-base specification on permeable surfaces and soakaway sizing. Finding a driveway installer near you who can demonstrate they've handled drainage properly on previous projects is worth the time.

All tradespeople on MyBuilder undergo checks at registration, such as ID documents, company details, certifications for regulated jobs and skill assessments, allowing you to hire with confidence.

Find a driveway installer near you

FAQs: Driveway Drainage

Is Driveway Drainage a Legal Requirement?

For new front garden driveways in England larger than 5 square metres, planning permission is required if the surface is impermeable and no drainage provision prevents runoff from entering the road. This effectively makes drainage provision a legal requirement for new non-permeable driveways.

Existing driveways aren't retrospectively required to add drainage, but if you're relaying or significantly altering an existing non-permeable driveway, the new rules apply.

Can I Connect Driveway Drainage to the Main Drain?

Driveway drainage should connect to the surface water sewer, not the foul water sewer. Connecting to the foul sewer is illegal - it increases the load on the sewage treatment system and can cause flooding and pollution.

If you're unsure which drain is which on your property, your local water company can provide a drainage map. You can browse completed driveway drainage projects on MyBuilder to see how different drainage solutions look in practice.

How Deep Does a Channel Drain Need to Be?

A domestic channel drain needs to sit 2-3mm below the finished driveway surface level so water flows into it naturally. The trench depth to achieve this depends on the height of the channel unit chosen, but typically requires excavation to 200–300mm below finished surface level, including 100mm of concrete haunch beneath the channel.

What Happens If I Don't Install Driveway Drainage?

Without drainage, water has four options: it soaks into the sub-base (weakening it and causing long-term settlement and cracking), it pools on the surface (a nuisance and safety hazard), it runs off the edges (potentially causing erosion), or it flows down the slope to the road or neighbouring land (which can create legal liability and is against SuDS regulations for new installations).

The cost of remedial drainage almost always exceeds the cost of installing it correctly in the first place.

How Long Does Channel Drain Installation Take?

Retrofitting a channel drain to an existing driveway typically takes one to two days depending on the run length and surface material. As part of a new driveway installation, the channel is set during the build with minimal additional time. Connecting to a soakaway requires a separate excavation that adds another half-day to a full day.
